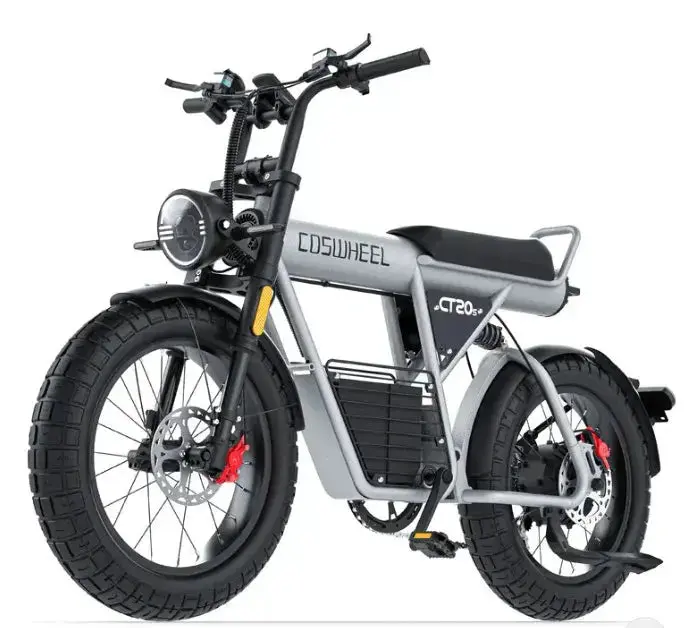

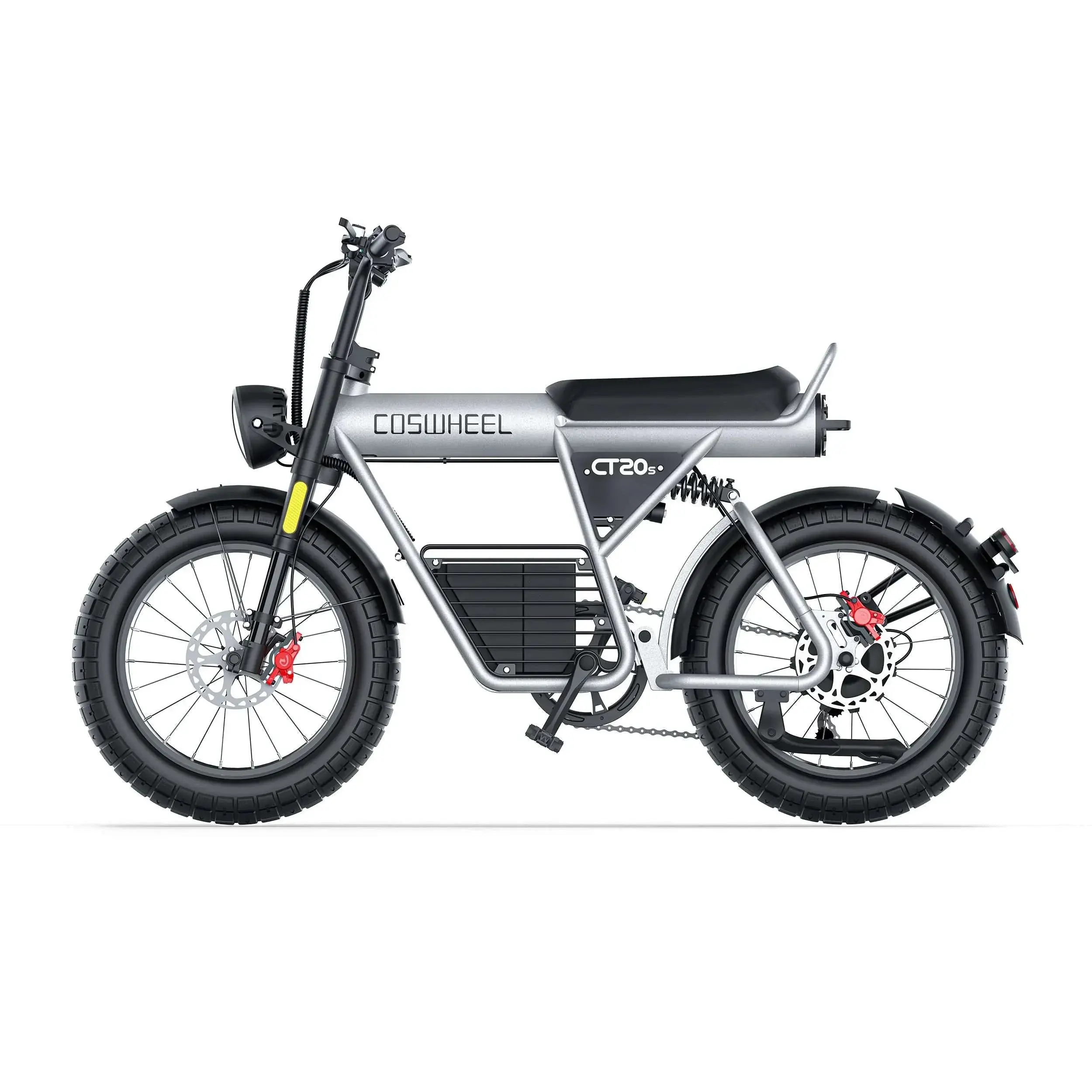

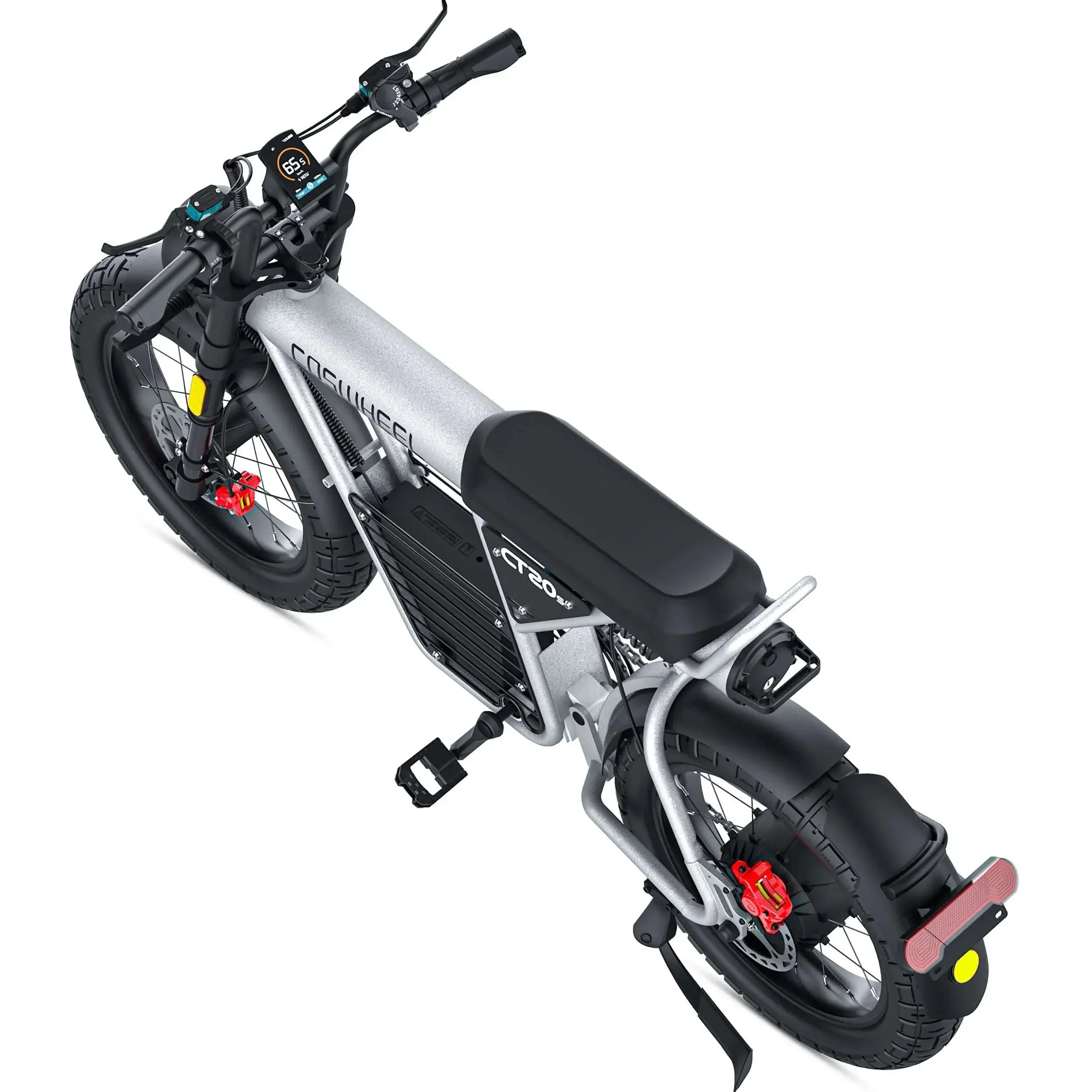

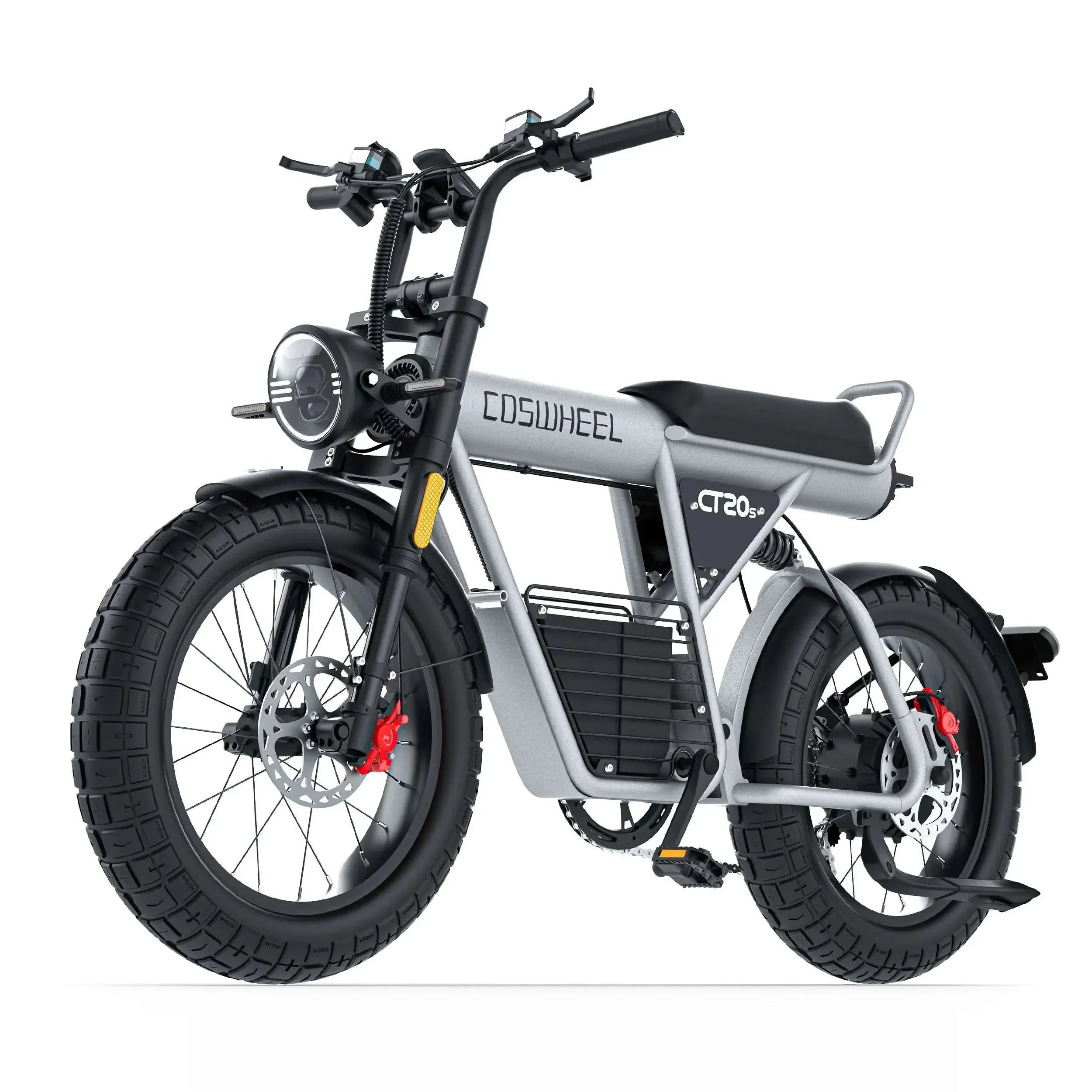

COSWHEEL CT20S 2000W



COSWHEEL CT20S Strong Power Electric Bike



This ebike has passed European CE, EN15194 and American UL2849 certifications, and is equipped with 5-speed electronic transmission, pedal chain Shimano 7-level manual transmission, and can be freely set according to your local regulations.



WHY CHOOSE COSWHEEL?



Super73 killer, with the same configuration, better quality and price.



The whole bike is made of aluminum alloy, which is solid, reliable, elegant and at the same time beats other ebikes with iron frames.



All products are independently developed and have appearance patents. With a coswheel ebike, you are unique.





CHARACTERISTICS OF CT20S





60V 1500W super power brushless motor, peak output 2000W.120N.m super torque, easy to climb up a 35-degree slope.



Adjustable rear shock, 350 lbs, high quality ride.



Equipped with an APP matching with IOS, it is easy to locate the position of CT20S









PACKING LIST



Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1









Specification



Color silver frame, black wheel



Battery  60V 27.5AH



Battery Energy 1200/1680Wh and 1650Wh



Frame Material full custom hydroformed triple-butted 6061-T6 aluminium alloy



Motor Peak 2000W  brushless high-speed motor



Max Speed 65km/h (40mph)

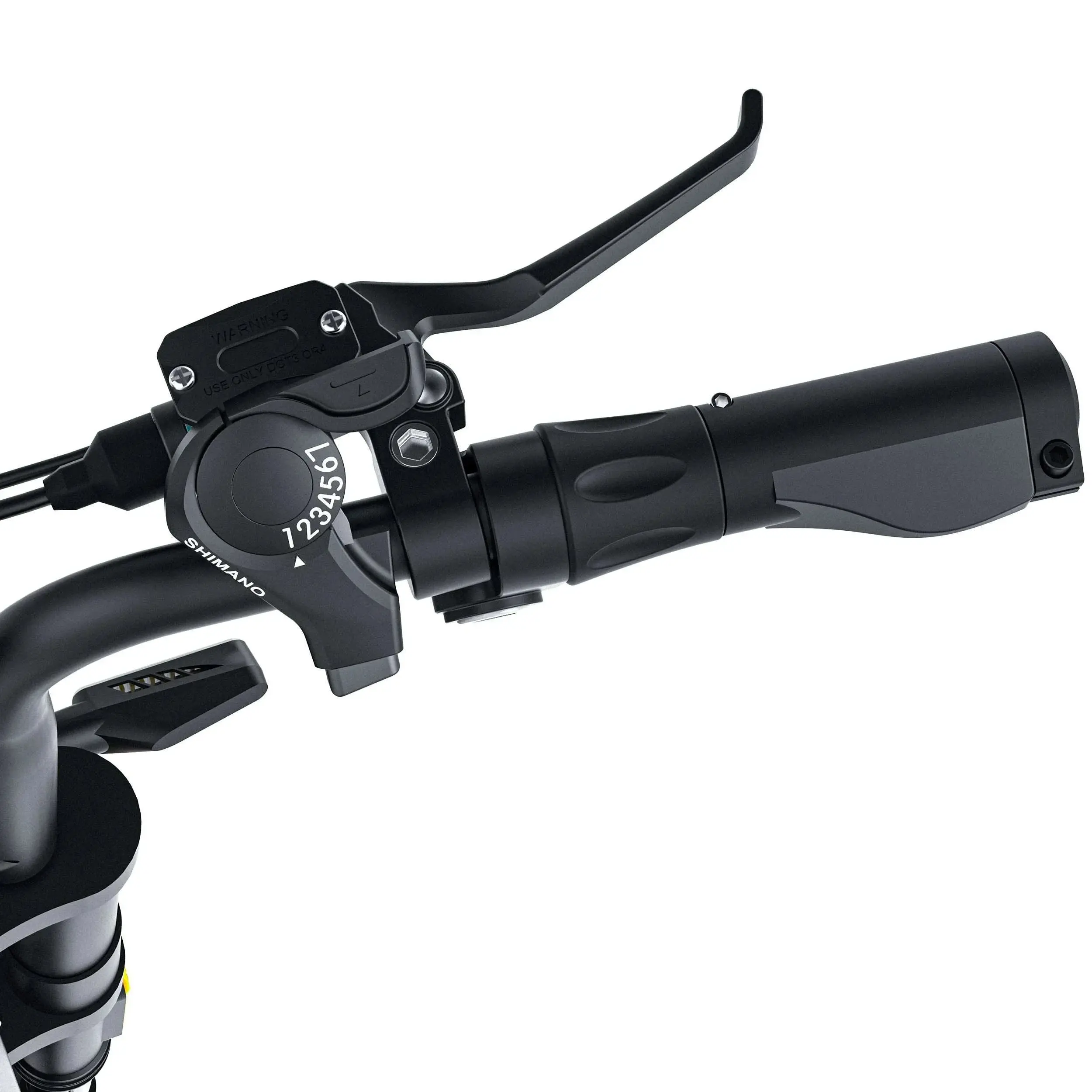

Gearbox Shimano 7-speed drivetrain

Tire Size Chaoyang black all terrain tire 20" × 5.0"/A820/60TPI



Range Per Charge 80-100km,



Voltage 60V



Foldable No



Charge time 7.0-12.0H



Front Fork 20"*5.0" all-aluminum double-shoulder snow shock-absorbing inverted fork

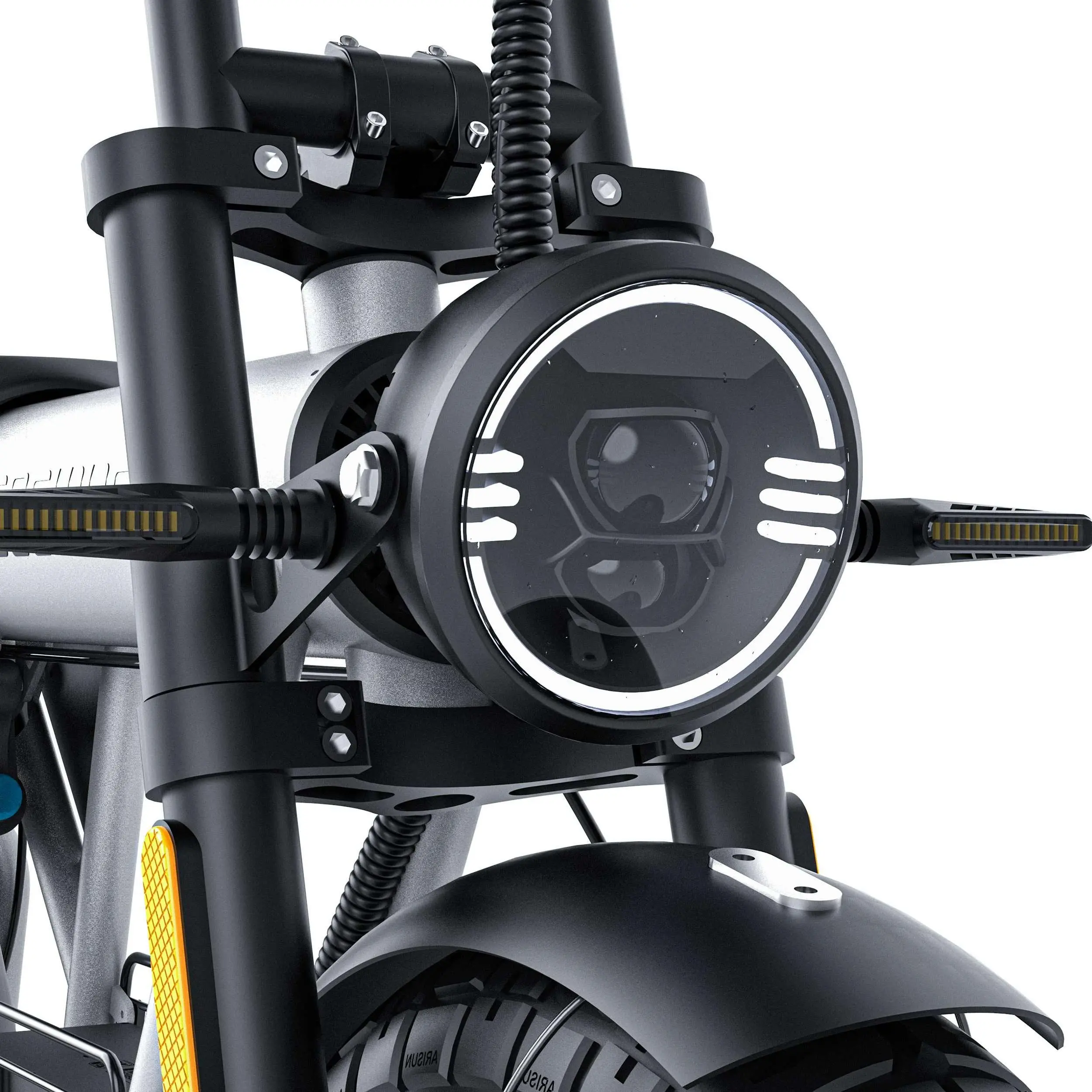

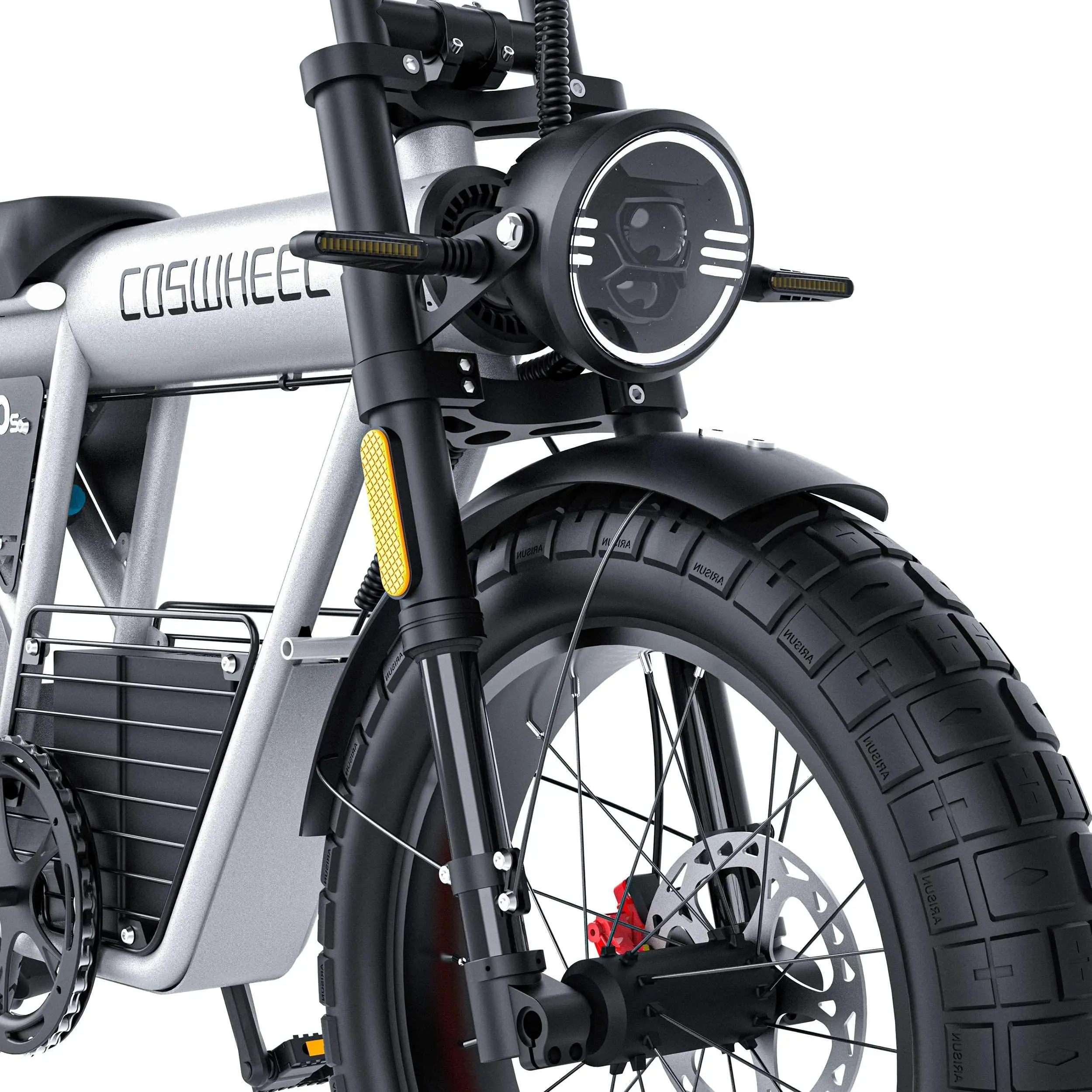

Headlight snow car headlights, 4 core wires, fast-demolition waterproof line

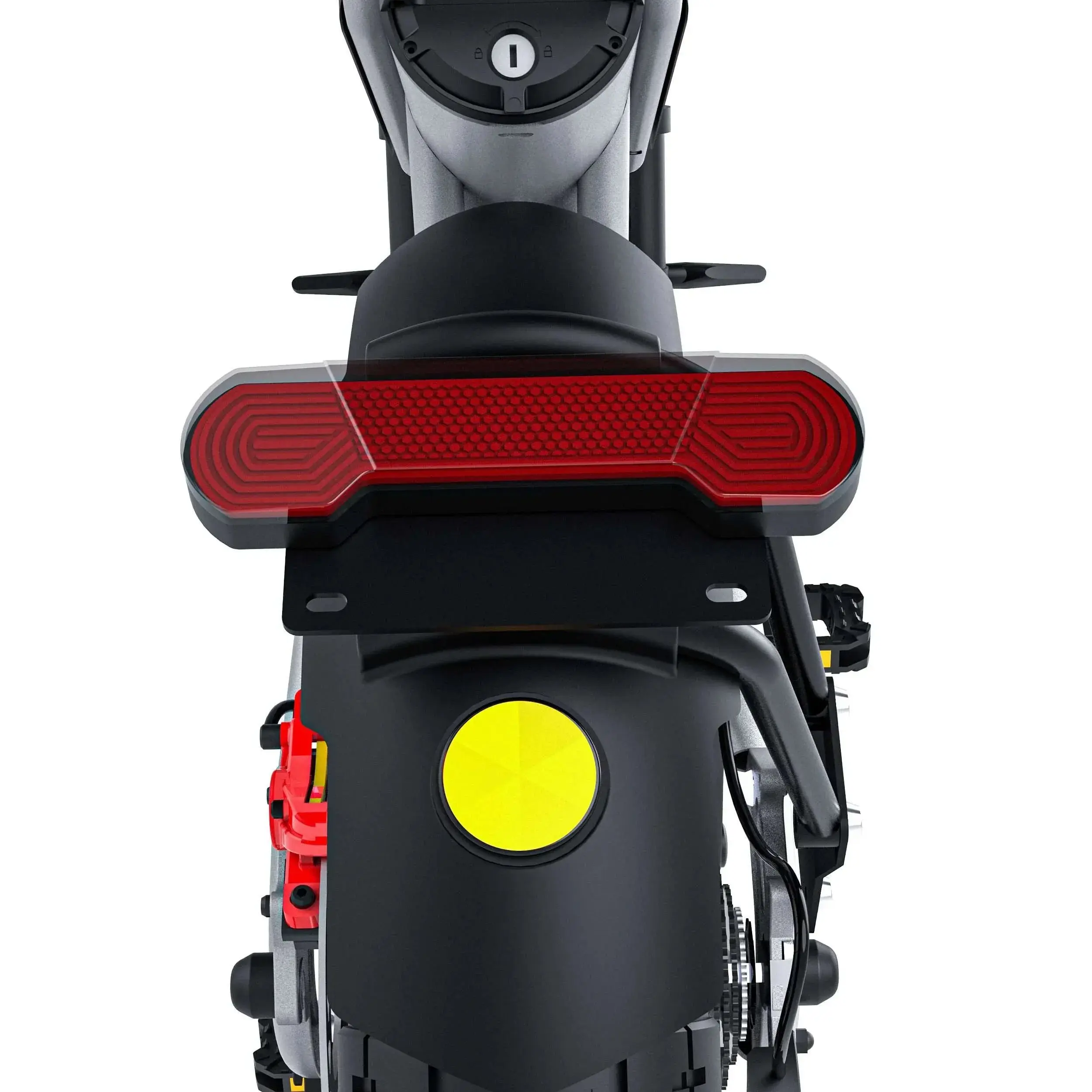

Turn Signal front and rear LED turn signals

Charger add defense backflow function, voltage 110V-240V



Controller maximum load 35AH current

Crank 1/2 "*3/32"*46T 7-speed ED tooth plate

Pedal aluminum alloy pedal, with reflect-light, axis 9/16 x2



Split Handlebar Sand black 31.8*660



Chain 7-speed anti-rust, 1/2" * 3/32"

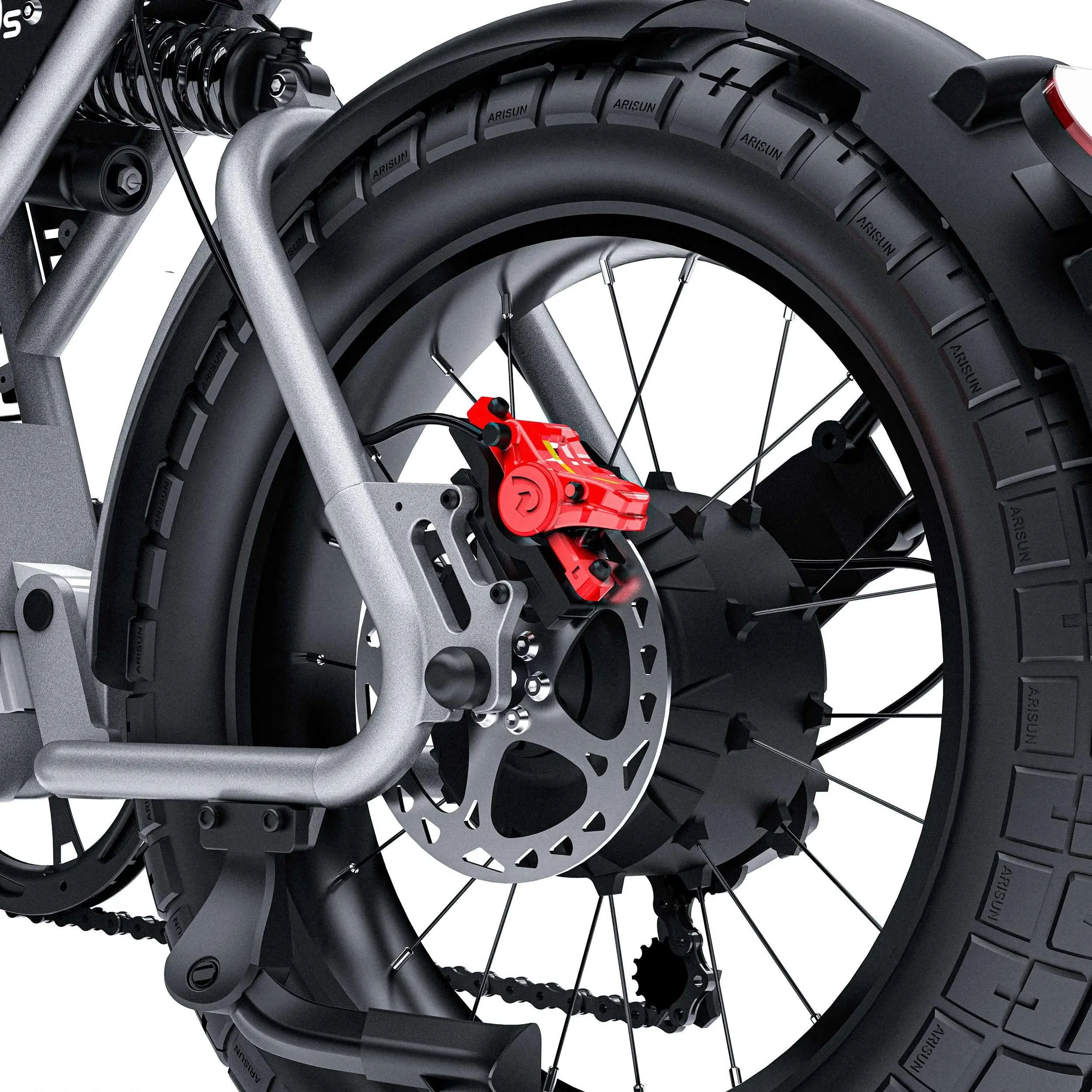

Brake Disc 180mm diameter, 3mm thick ventilated brake disc

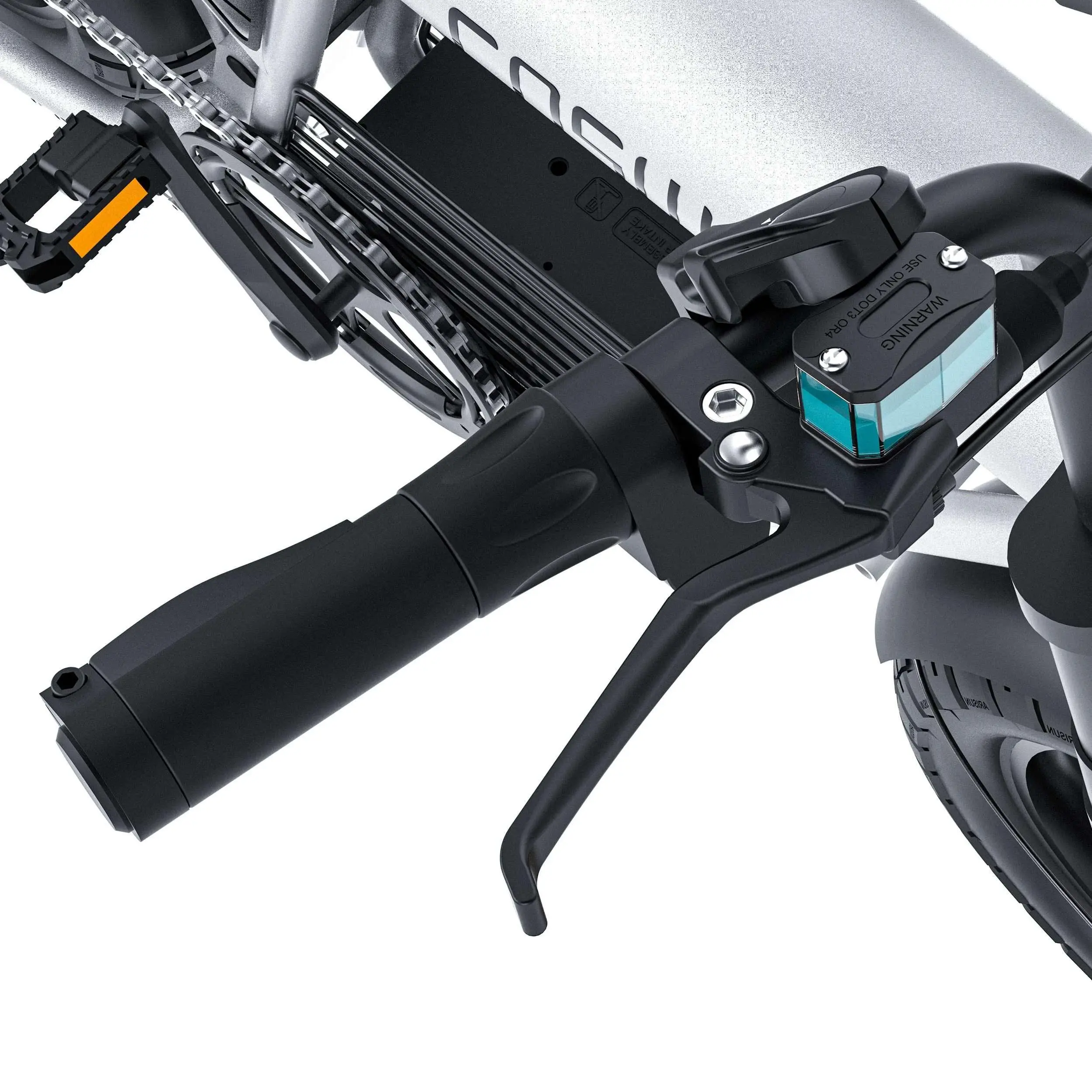

Brake System motorcycle brake with oil cylinder

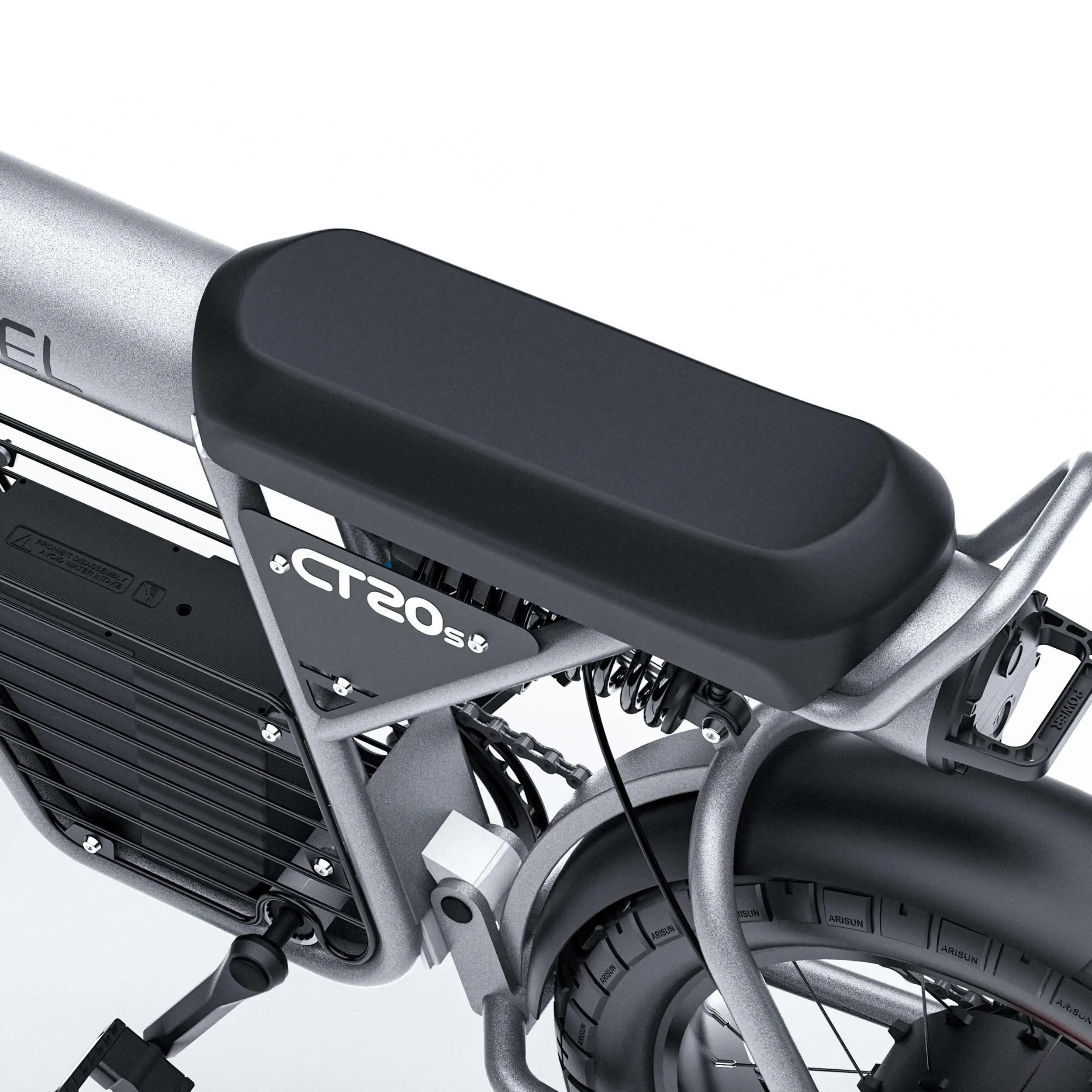

Shock djustable damping, hole center 230mm, 350 pounds, black



Suspension Travel front 120mm, rear 180mm



Suspension front and rear suspension



Torque 120N.m



Weight ≥45KG



Max load 200KG (safty load≤150KG)



Size 180*60*115cm



Packing Size 146*39*86cm



Rider Height suitable for 5.1-6.5(ft)
